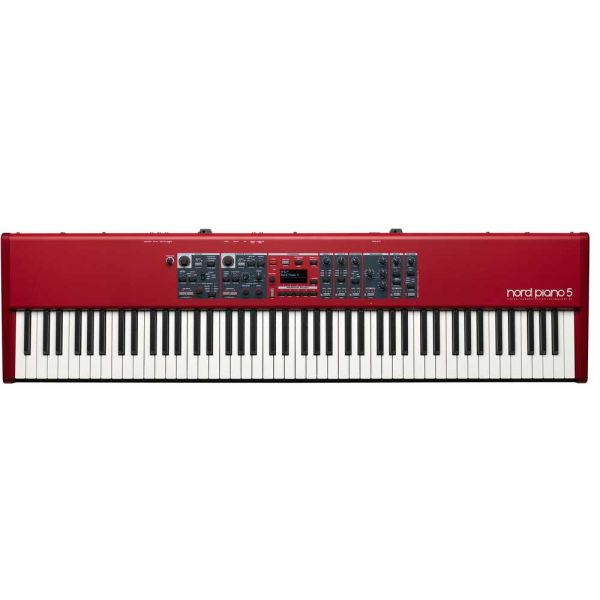

Nord Piano 5 (88 Key) Piano series

Nord Piano 5 88-note Triple Sensor keybed with grand weighted action

Oled Display

Seamless Transitions

Split Point Crossfades

16 banks with 25 programs – 400 locations

Organize functionality for programs

Live Mode – 5 Live programs

Global Transpose: +/- 6 semitones

Program Transpose: +/- 6 semitones

Fine-tune: +/- 50 Cents

Kbd Touch: 3 velocity response curves

Triple Sensor keybed with Virtual Hammer Action Technology

Split functionality with selectable split point and LED indication

Layer functionality

Mono Output option

Dynamic Sustain Pedal action with the included Nord Triple Pedal

USB-MIDI

Free OS updates

Piano Section

2 independent Layers

6 types – Grand, Upright, Electric Pianos, Digital, Layer, Clavinet and Harpsichord.

Each category can contain up to 20 different models.

120 Voice Polyphony (stereo/mono pianos)

Piano Timbre feature with Soft, Mid and Bright settings for acoustic pianos. Dyno 1 and 2 options for electric pianos.

Layer Detune with 3 amounts

Advanced String Resonance (Generation 2) – adjustable amount

Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord

Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 – adjustable amount

Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

Sample Synth Section

46 Voice Polyphony

Amp envelope with Attack and Decay/Release

Bright and Soft Timbre options

Adjustable Vibrato with 3 Delay options

Unison feature with 3 amounts

Selectable velocity sensitive low pass filter and dynamic range

Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)

Volume controllable with Volume Pedal (not included)

Memory

Approx. 2 GB dedicated to the Nord Piano Library

Approx. 1 GB dedicated to the Nord Sample Library

Effects Section

Effect 1

Pan, Tremolo, Wah and Ring Modulator

Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob

Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal

Effect 2

Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe

Two selectable depths for each effect

Amp Simulations, Comp and EQ

Comp/Amp – three amp/speaker simulations, Tube Overdrive

Drive/Compression amount controlled with the Drive knob

Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Global mode for EQ

Delay

Delay Effect with Rate, Amount and Tap-tempo controls

Ping-Pong mode

Global mode

Master Effects

Dedicated Reverb with Booth, Room, Stage, Hall and Cathedral algorithms. Dark/Bright settings and optional Chorale modulation effect.

Connections

2 Audio outputs L & R – ¼”, 6,35 mm jacks, unbalanced

1 Monitor input – 1/8″, 3,5 mm stereo jack

1 Headphone output – ¼”, 6,35 mm stereo jack

1 Sustain Pedal input – ¼”, 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal.

1 Volume Pedal input – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.

MIDI In, MIDI Out – 5 pin DIN connectorsNord Piano 2 Connections

USB – type B connector – for transferring sounds and USB-MIDI

IEC C14 power connector
