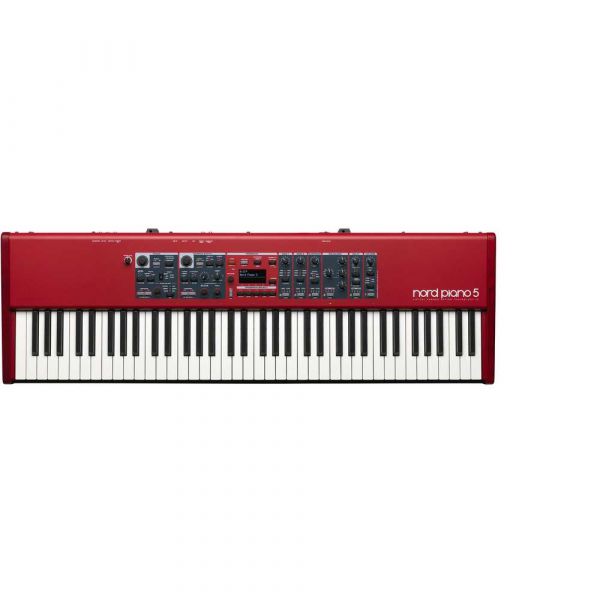

With the combination of a premium Triple Sensor keybed and our exclusive Virtual Hammer Action Technology, the portable Nord Piano 5 delivers an exceptional playing experience.
Global
OLED Display
Seamless Transitions
Split Point Crossfades
16 banks with 25 programs – 400 locations
Organize functionality for programs
Live Mode – 5 Live programs
Global Transpose: +/- 6 semitones
Program Transpose: +/- 6 semitones
Fine-tune: +/- 50 Cents
Kbd Touch: 3 velocity response curves
Triple Sensor keybed with Virtual Hammer Action Technology
Split functionality with selectable split point and LED indication
Layer functionality
Mono Output option
Dynamic Sustain Pedal action with the included Nord Triple Pedal
USB-MIDI
Free OS updates
Piano Section
2 independent Layers
6 types – Grand, Upright, Electric Pianos, Digital, Layer, Clavinet and Harpsichord.
Each category can contain up to 20 different models.
120 Voice Polyphony (stereo/mono pianos)
Piano Timbre feature with Soft, Mid and Bright settings for acoustic pianos. Dyno 1 and 2 options for electric pianos.
Layer Detune with 3 amounts
Advanced String Resonance (Generation 2) – adjustable amount
Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 – adjustable amount
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
Sample Synth Section
46 Voice Polyphony
Amp envelope with Attack and Decay/Release
Bright and Soft Timbre options
Adjustable Vibrato with 3 Delay options
Unison feature with 3 amounts
Selectable velocity sensitive low pass filter and dynamic range
Octave transpose: -1/+1 (-6/+6 in Split mode, depending on Split position)
Volume controllable with Volume Pedal (not included)
Memory
Approx. 2 GB dedicated to the Nord Piano Library
Approx. 1 GB dedicated to the Nord Sample Library
Effects Section
Effect 1
Pan, Tremolo, Wah and Ring Modulator
Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
Effect 2
Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
Two selectable depths for each effect
Amp Simulations, Comp and EQ
Comp/Amp – three amp/speaker simulations, Tube Overdrive
Drive/Compression amount controlled with the Drive knob
Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
Global mode for EQ
Delay
Delay Effect with Rate, Amount and Tap-tempo controls
Ping-Pong mode
Global mode
Master Effects
Dedicated Reverb with Booth, Room, Stage, Hall and Cathedral algorithms. Dark/Bright settings and optional Chorale modulation effect.
Connections
2 Audio outputs L & R – ¼”, 6,35 mm jacks, unbalanced
1 Monitor input – 1/8″, 3,5 mm stereo jack
1 Headphone output – ¼”, 6,35 mm stereo jack
1 Sustain Pedal input – ¼”, 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal.
1 Volume Pedal input – ¼”, 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
MIDI In, MIDI Out – 5 pin DIN connectorsNord Piano 2 Connections
USB – type B connector – for transferring sounds and USB-MIDI
IEC C14 power connector
Dimensions
Nord Piano 5 73: 73: 1070mm (42,1″), 342mm (13.4″) 120mm (4.7″)
Weight
Nord Piano 5 73: 15,5 kg (34.1 lbs)
Pedal: 2 kg (4.4 lbs)
Included Accessories
Nord Triple Pedal
User Manual
Power cord
