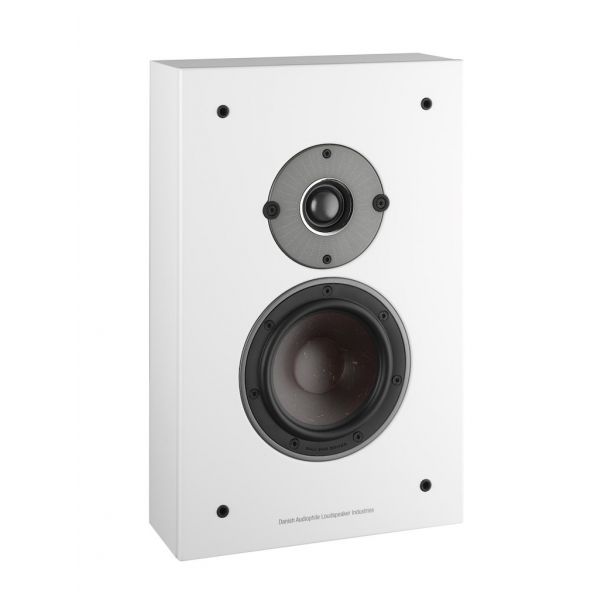

Dali Oberon On-Wall Speaker White

EASY TO POSITION

The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.

CONTEMPORARY DESIGN

The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.

WOOD FIBRE CONE

The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

PATENTED SMC

The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk - minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.

WOOFER

The SMC based 5.25" wood fibre woofer used in the OBERON ON-WALL has been optimised with a new wood fibre structured cone. It is dedicated to reproduce the delicate midrange and bass frequency area. It is constructed from a blend of fine grain paper pulp and reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure - like every other driver made by DALI.

In combination with a low-loss surround and spider suspension, the wood fibre cone reproduces the micro details in the signal - unfiltered and with high accuracy.

The membrane terminates in a rubber surround that is chosen for its soft and very flexible properties. This gives the membrane free movement with a very low dampening effect, and leaves the magnet motor to control the membrane movement.

SMC

With the use of Soft Magnetic Compound (SMC) in the OBERON ON-WALL woofer, mechanical distortion caused by hysteresis and eddy currents is greatly reduced. This improvement in the magnet motor system results in a lowering of the third order distortion. This allows the OBERON ON-WALL to present longer listening pleasure with a relaxed midrange and a surprising amount of detailing for the class.

The magnet motor itself consists of a large ferrite magnet that sorrounds a pole piece made with a unique combination of iron and SMC. The iron ferrrite forms the lower base of the pole cylinder, topped of with 10 mm SMC disk to crown the pole piece. This combination minimizes the negative effects of the iron, while placing the SMC disk right in the main working area of the 4-layer voice coil. This placement ensures the maximum effect from the SMC on the voice coils environment, resulting in a greatly improved constant flux field.

TWEETER

DALI has specifically developed the oversized 29 mm ultra-lightweight soft dome tweeter for the OBERON series - including the OBERON ON-WALL - combining well proven technologies from our existing DALI ranges with new features.

The large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice coil motion to a precise minimum.

The oversized 29 mm membrane is constructed based on an ultra-light wave weave fabric and is additionally optimised for a larger bandwidth in its lower frequency area. This ensures the optimal handover from the midrange woofer to the tweeter, creating a well-balanced, unforced and very coherent upper midrange. Compared to most soft dome tweeters in the market, the DALI dome material is less than half the weight (0.060 mg/mm2).

The tweeter front plate near the dome has been designed with similar geometry as the OPTICON and RUBICON tweeters to create the optimal working conditions for the soft dome. The aim is to combine an extended frequency response with wide dispersion and low coloration.

BASS PORT

With its unique bass port design the OBERON ON-WALL takes the use of the rear wall to a whole new level.

This on-wall speaker uses the port design, which was originally introduced with the DALI RUBICON LCR. The OBERON ON-WALL bass ports fire downwards and allows the ports and the wall to work together to extend the bass reproduction far beyond what should be possible from such a compact cabinet.

DALI OBERON ON-WALL SPECS

Product series OBERON

Frequency Range (+/-3 dB) [Hz]         55 - 26,000

Sensitivity (2,83 V/1 m) [dB]    86.5

Nominal Impedance [ohms]     6

Maximum SPL [dB]      107

Recommended Amplifier Power [W]    25 - 100

Crossover Frequency [Hz]       2,100

Crossover Principle     2-way

High frequency driver, Quantity           1 x 29 mm

High frequency driver, Diaphragm type           Soft Textile Dome

Low frequency driver, Quantity            1 X 5.25"

Low frequency driver, Diaphragm type            Wood Fibre Cone

Enclosure type Bass Reflex

Bass Reflex Tuning Frequency [Hz]    50

Connection Input         Single Wire

Recommended Placement      On-Wall

Recommended Distance From Wall [cm]        0 - 10

Dimensions With Base (HxWxD) [mm]            385 x 245 x 120

Accessories Included   Manual

Rubber Feet

Front Grille

Weight [kg]      4.9
