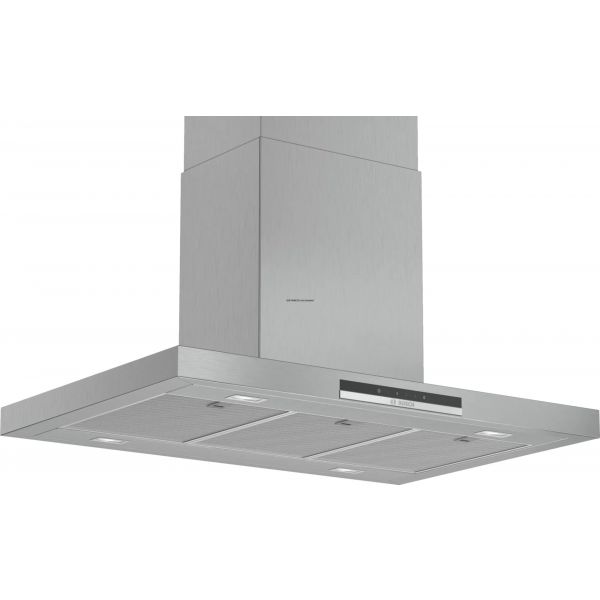

Bosch Serie 4 Island Extractor 90 cm DIB97IM50
The island chimney hood: the perfect solution for your cooking island thanks to flexible ceiling mounting.
Especially silent: maximal extractor performance with minimal noise
Easy-to-clean interior: hidden screws and cables along with rounded edges make cleaning easy.
TouchSelect control: quick touch-control selection of desired settings and light. TouchSelect control: quick touch-control selection of desired settings and light.
Intensive speed setting: removes strong kitchen odours especially quickly and effectively.
Extraction rate: at MAX_FOERDERLEISTUNG m3/h, it quickly ensures optimal kitchen air quality.
With our control elements, you have everything under control
With the new, easy-to-read TouchSelect control, you can select three power levels and one intensive setting directly.
Our grease filter creates a consistently fresh feel-good ambiance before, during and after cooking
Ducted and recirculation hoods require metal grease filters to filter grease and other solid particles out of the extracted air. To keep these filters operating at maximum efficiency, clean them about once a month either by hand or in the dishwasher.
The optimum air volume for kitchen of all sizes.
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
Additional product information
Energy Efficiency Class: B*
Average Energy Consumption: 73.6 kWh/year*
Blower Efficiency Class: B*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: B*
Noise max. Normal Level: 57 dB*
90 cm wide
Suitable for ducted or recirculating operation
Recirc. kit or clean air kit
Designed for ceiling mounted installation
touch control for extractor speeds and light
touch control with Electronic display
3 speed + intensive operation via touch control
Electronic controls via touch control with Electronic display
touch control (3 speed + intensive operation) with Electronic display
3 speed + intensive operation
Intensive op. revert dur.: 6 min.
Easy to clean
4 x 1,5W LED
Light Intensity: 409 lux
Colour Temperature: 3500 K
Removable metal grease filters, dishwasher safe
Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 438 m³/h Intensive 754 m³/h
Ducted extraction rate according to DIN/EN 61591max. 438 m³/h
Maximum extraction 438 m3/h
Extraction rate exhaust air according to EN 61591:
max. normal use 438 m³/h, intensive 754 m³/h
Dimensions recirculating with CleanAir module (HxWxD): 812-1044 x 898 x 600 mm
Additional noise insulation
Noise level according to EN 60704-3 und EN 60704-2-13 at max. normal use exhaust air: 57 dB(A) re 1 pW (44 dB(A) re 20 µPa sound pressure)
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 57 dB(A) re 1 pW (44 dB(A) re 20 µPa sound pressure)
Intensive: 68 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Max. extraction rate: 754 m3/h
Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm
Dimensions recirculating (HxWxD): 744-1044 x 898 x 600 mm
Power rating: 256 W
Electrical cable lenght 1.3 m
Voltage: 220 - 240 V
Additional product information
Depth of the product 600
Built-in / Free-standing Built-in
Operating Mode Convertible
Max. air recirculation (m³/h) 339
Sound pressure max. normal 44
Type of control setting and signalling devices LED, touch control
Total annual energy consumption (kWh) 73.6
Power consumption standby/display off 0.2
