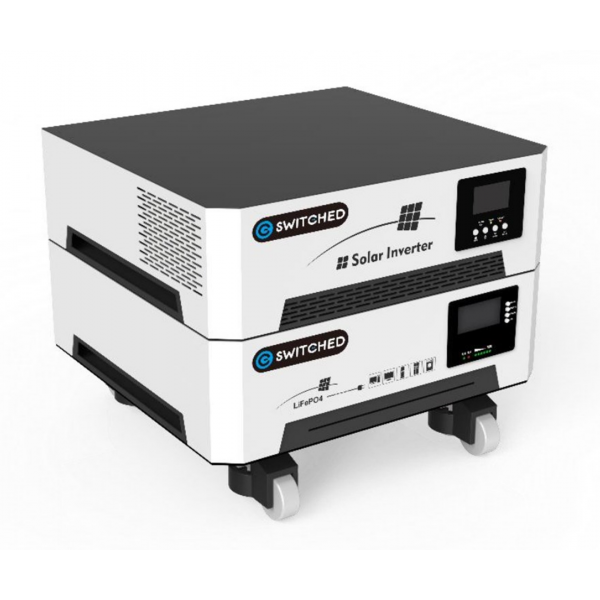

Introducing our innovative ESS Switched Trolley Stackable Power Station, the ultimate solution for your power needs during load-shedding or on the go. Experience uninterrupted power wherever you are with our cutting-edge technology packed into a sleek and versatile design. Switched power station is not just portable; it's stackable, making it perfect for both solo adventurers and large-scale events.
Stackable Design
Smart Connectivity
Durability & Safety
Reliable Energy Source
Rated power - 5200W
Output voltage waveform - Pure sine wave
Output voltage regulation - 230Vac 5%
Output frequency - 50Hz or 60Hz
Peak efficiency - 93%
Nominal DC input voltage - 48Vdc
Standby Consumption - < 25W
Max solar power input - 6000W
PV max charging current - 80A
Combined charging current - 80A
Max efficiency - 98.0% max
PV array open circuit voltage - 450VDC
PV Array MPPT Voltage Range - 150V-430VDC
AC input voltage - 230Vac 5%
Acceptable input voltage range - 170~280VAC
Nominal input frequency - 50Hz / 60Hz (Auto detection)
Transfer time - 10ms typical (UPS, VDE); 20ms typical (APL)
Charging current @ Nominal input voltage - 60A
Charging Algorithm 4- step (Li)
AC output - 230Vac (Terminal)
Nominal voltage - 51.2V
Battery capacity - 5120Wh
Standard charging and discharge current - 100A
Maximum charging & discharge current - 100A
Operation ambient temperature -Charge- 0~45
Discharge - 20~55
