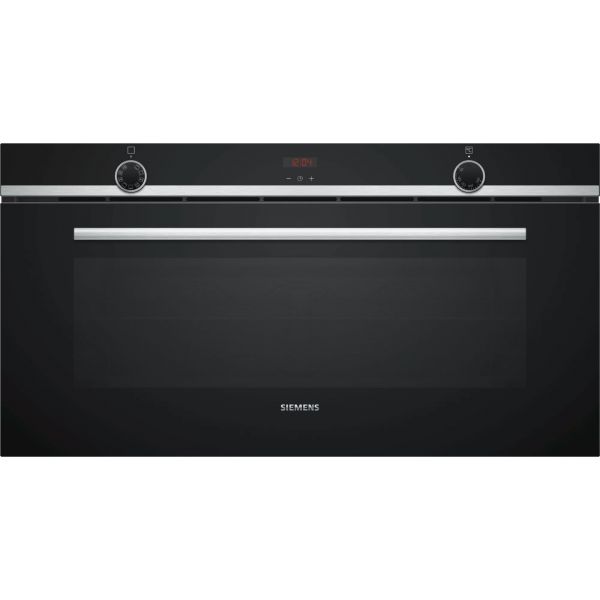

The extra-large compact oven offers maximum capacity and shortens your cooking time thanks to fast preheat.
Fast preheat: reach the required baking temperature sooner.
granite Glance Enamel: high-quality coating for easy cleaning.
hotAir: perfect baking results on up to 2 levels in parallel.
Type of oven / heating system:
90 cm built-in oven with 8 heating methods: Hot Air Standard, Conventional cooking, Circulating air, hot air grilling, Full width grill, Bottom heat, Conventional heat gentle
Cavity volume: 85 l
Hook-in racks / rails
Accessory
Design:
Cavity inner surface: Enamel grey
Cleaning:
side, back panel liners
Full glass inner door
Comfort:
LED clock and automatic programmer
Drop down door
Rapid heating-up
Elongated halogen light
Integral cooling fan
Accessory:
1 x combination grid, 1 x universal pan
Comfort and Safety:
Child safety button
Automatic safety switch off
door contact switch
Technical Info:
Length of mains cable: 115 cm
Nominal voltage: 220 - 240 V
Total connected load electric: 3.1 KW
Energy efficiency rating (acc. EU Nr. 65/2014):
Energy consumption per cycle in conventional mode: 1.04 kWh
Energy consumption per cycle in fan-forced convection mode: 1.09 kWh
Number of cavities: 1
Heat source: electrical
Cavity volume: 85 l
Dimensions:
Appliance dimension (hxwxd): 475 mm x 896 mm x 572 mm
Niche dimension (hxwxd): 860 mm - 864 mm x 477 mm - 480 mm x 560 mm
“Please reference the built-in dimensions provided in the installation drawing”
Product description
iQ500
90 cm built-in oven
Heating methods
Bottom heat, Circulating air, Top/bottom heat, Top/bottom heat gentle, Full width grill, Hot air grilling, Hot Air, Rotisserie
Comfort and safety
Oven capacity: 85 Litres
Temperature range 30°C-250°C
Electronic clock
Oven interior light – 2 elongated halogen lights
Integral cooling fan
Child lock
Automatic switch off
Design
Pop-out controls, touch controls
Oven cavity with removable rack supports
Cleaning
Catalytic side liners and back panel
Full glass inner door
Accessories
1 x Combination grid
1 x Universal pan
Product specs
Overall (H x W x D): 47.5 x 89.6 x 57.2cm
Aperture (H x W x D): 47.7-48.0 x 86.0-86.4cm x 56.0cm
Rating: 3100 W
