NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
SUPERIOR TRANSDUCERS
Woofers and compression drivers are precision built taking advantage of RCF?s technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.
POWERFUL CLASS D AMPLIFIERS
RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 3?amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 3 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
YOUR STAGE PARTNER
Every ART model can be used in the standard or stage monitor configuration

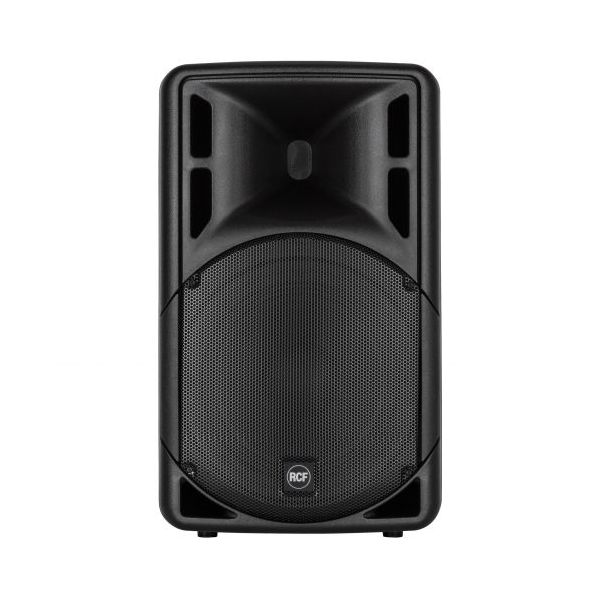

ART 3 speakers are ideal for the musician or sound provider. Cabinets are moulded on a special polypropylene composite material designed to dampen down vibrations even at maximum volume settings. From moulding to the final texture, ART3 offers maximum reliability and strength for intensive use. The ART 315 is equipped with a top handle and two side handles for greater portability.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE: 50 Hz ? 20000 Hz
MAX SPL @ 1M: 128 dB
HORIZONTAL COVERAGE ANGLE: 90?
VERTICAL COVERAGE ANGLE: 60?
Transducers
COMPRESSION DRIVER: 1.0”, 1.5” v.c
WOOFER: 12”, 2.5” v.c
Input/Output section
INPUT SIGNAL: bal/unbal
INPUT CONNECTORS: XLR, Jack
OUTPUT CONNECTORS: XLR
INPUT SENSITIVITY: -2 dBu/+4 dBu
MIC. INPUT SENSITIVITY: -32 dBu
Processor section
CROSSOVER FREQUENCIES: 1800 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
CONTROLS: Volume, Boost, Mic/Line
Power section
TOTAL POWER: 800 W Peak, 400 W RMS
HIGH FREQUENCIES: 200 W Peak, 100 W RMS
LOW FREQUENCIES: 600 W Peak, 300 W RMS
COOLING: Convection
CONNECTIONS: VDE
Standard compliance
CE MARKING: Yes
Physical specifications
CABINET/CASE MATERIAL: PP Composite
HARDWARE: 4 x M10
HANDLES: 1 Top, 2 Side
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
Size
HEIGHT: 680 mm / 26.77 inches
WIDTH: 405 mm / 15.94 inches
DEPTH: 345 mm / 13.58 inches
WEIGHT: 16.8 kg / 37.04 lbs
Shipping informations
PACKAGE HEIGHT: 406 mm / 15.98 inches
PACKAGE WIDTH: 466 mm / 18.35 inches
PACKAGE DEPTH: 798 mm / 31.42 inches
PACKAGE WEIGHT: 19.8 kg / 43.65 lbs
