Control your bass
The XPRS Series active PA speakers are compact and portable, yet high powered. Forget complicated setups and tangled cables as this system offers straightforward, plug-and-play use. Pioneer Pro Audio sound engineering technology and the use of Powersoft amps ensures these mobile speakers are reliable and energy efficient, making them suitable for all music genres and environments.

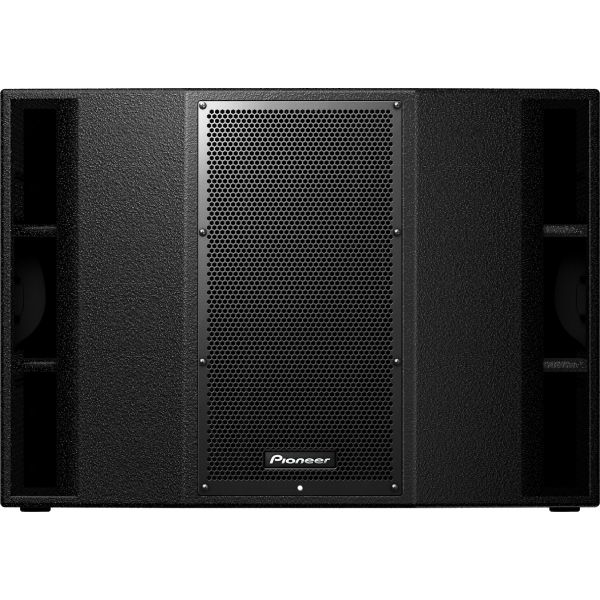

Enhance your lower frequencies with the quick and powerful bass response of the XPRS215S subwoofer. The sub’s built-in horn shape and dual 15-inch, high-grade ferrite LF drivers deliver rich, powerful low frequencies, while the Crossover and Phase switches allow you to control your DSP settings effortlessly.
Key features
Double the bass
The XPRS215S’ birch hardwood cabinet encloses two 15-inch LF drivers and a built-in horn shape to deliver rich, powerful low frequencies, no matter the event or the setting.
Powersoft Class D amps
Powersoft’s Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output. The Power Factor Correction (PFC) reduces power consumption while ensuring steady performance in all environments.
Instant control
A versatile Crossover switch lets you adjust the low pass filter cut-off at stages between 80 Hz and 150 Hz. At the same time, the Phase switch allows you to choose a positive or negative polarity to prevent multiple subwoofers from cancelling each other out.
Advanced protection
The XPRS subwoofer is packed with features to protect the drivers, amp and power supply – giving you peace of mind, consistent high-quality sound, and extending the life of your sound system.
Flexible connectivity
The subwoofer has 2 balanced XLR/TRS combo sockets so you can input a couple of devices at the same time. Plus 2 balanced XLR through outputs enable easy connection to other speakers and subs.
Main Features
What's in the box
XPRS 215S x 1
Powerd cord
Installation and Operation Manual
Important Safety Precautions
Specifications
Supported voltages -
100 V (50 Hz/60 Hz)
110 V to 240 V (50 Hz/60 Hz)
Width - 743 mm
Height - 524 mm
Depth - 811 mm
Weight - 55.9 kg
Frequency Range - 40 - 160 Hz
System characteristic
Maximum Sound Pressure - 135 dB
Terminals
Inputs - 2 XLR/TRS Combo (balanced)
Outputs - 2 Through output XLR (balanced)
Amplifier
Amplifier Output -
2400W peak / 1200W cont.
Class D
Impedance - 10 kΩ
