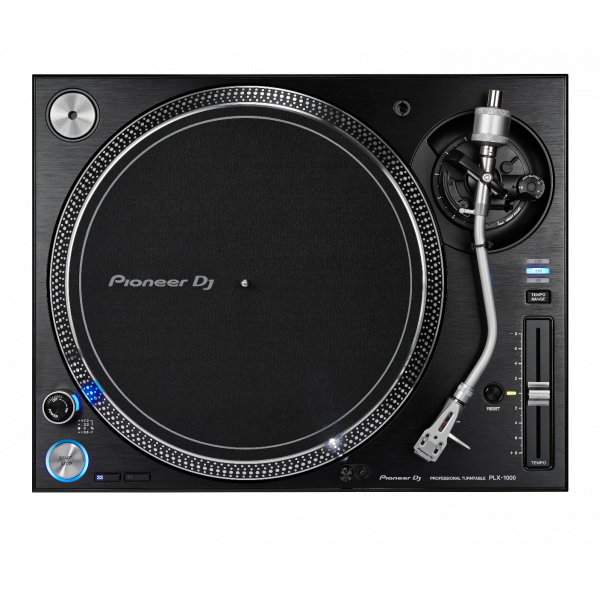

A reborn classic
c The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.
Simply add your choice of cartridge and stylus to the PLX-1000 (not included) and combine with your mixer for an ideal setup for turntablists. An ideal match for DJs is the handmade PC-X10 (sold separately).
Key features
Turn the tables
The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
Excellent sound design
The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
Pick up the pace
Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.
Flexible connectivity
Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.
What's in the box
PLX-1000
Power cord
Audio cable
Ground wire
Adapter for EP record
Turntable sheet
Slip mat and sheet
Dust cover
Head shell
Balance, sub and shell weights
Operating instructions
Specifications
Width 453 mm
Height 159 mm
Depth 353 mm
Weight 14.6 kg
Turntables
Drive Method - Quartz lock, servo-type, direct drive
Platter - Aluminium, die-casting diameter: 332 mm
Motor - 3-phase, brushless DC motor
Braking System - Electronic brake
Rotation Speed - 33⅓-45 rpm
Rotation Adjustment Range - ±8, ±16, ±50 %
Wow and Flutter - < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)
Signal-to-Noise Ratio - 70 dB
Starting Torque - > 4.5 kgf・cm
Start Time - Within 0.3 sec (at 33⅓ rpm)
