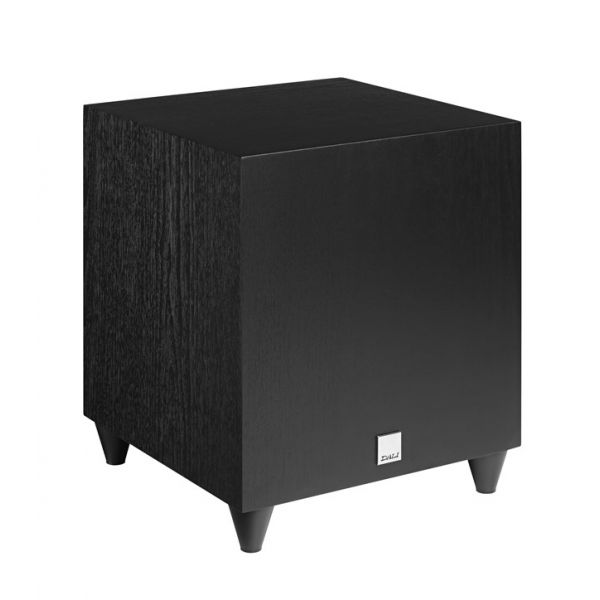

Dali Sub C-8 D Subwoofer Black

HIGH-YIELD AMPLIFIER

All amplifiers in DALI subwoofers have the stamina to keep a high-yield performance and the headroom to draw out that little extra when needed.

FLEXIBLE CONNECTIVITY

All DALI subwoofers are compatible with almost any amplifier, receiver or processor due to the choice of LFE or LINE inputs.

ELEGANT AND SIMPLE DESIGN

The cabinet is designed to fit perfectly to the size of the woofer, but without forgoing the inner volume that is needed to produce a powerful bass performance.

AMPLIFIER

The integrated 170 Watt RMS Class D amplifier is a highly linear construction. The DALI SUB C-8 D will follow and render the required signal with an absolute minimum of bias. Designed not only for continuous power, but also for peak performances, the SUB C-8 D is able to deliver 220 Watt Peak Power. This is very relevant when it comes to both movie and music signals.

To improve sound reproduction and to ensure performance under difficult circumstances, a limiter has been incorporated in the amplifier section. The integrated limiter works in two areas: It compares the input signal amplitude to the potential output signal level, and it compares the available supply voltage from the power supply to the expected output signal. If any of these comparisons show potential problem, the limiter will cut the signal in a soft manner and without affecting peak power.

Fitted with controls for gain, cut-off frequency, and phase, the DALI SUB C-8 D will adapt to any front speaker and room acoustics. And with a choice of LFE and LINE inputs it can be connected to almost any amplifier, receiver or processor.

The switch mode power supply is part of the reason for very low power consumption - only 0.4 Watt in standby mode. And the amplifier displays an impressive efficiency of 70%. In unison the high-efficiency amplifier section and power supply construction generate an absolute minimum of heat loss. For that reason you will find no external heat sink on the SUB C-8 D.

WOOFER

DALI SUB C-8 D is equipped with an 8” down-firing woofer. The cone is constructed from high-quality paper pulp resulting in a rigid cone with excellent breakup characteristics while at the same time being very lightweight and agile.

The woofer engine is built around an ‘over-sized’ ferrite magnet and optimised for maximum flux within the voice coil gap. It was crucial for our project team to enable the SUB C-8 D to render the finer low frequency details in music - also at high sound pressure levels. The measured values indicate that we reached a level of control and precision that is rarely to be found in this category at all. And the numerous listening sessions has truly convinced us that this was the right way to go.

The voice coil is 26.5 mm long and built for long excursions. It is vented to ensure air-cooling to the system and the benefit is a stable impedance response. The pole piece is likewise vented for maximum cooling, and here the venting also reduces internal compression in the motor system. This ensures free movement of the cone without any over/under pressure affecting the performance.

Adhering to the low-loss sound design principle, the surround of the woofer is built to allow long and linear excursion. The over-sized suspension is designed to allow both weak and strong transients to turn into undistorted acoustic signals.

DALI SUB C-8 D SPECS

Product series SUBWOOFERS

Frequency Range (+/-3 dB) [Hz]         33 - 200

Maximum SPL [dB]      109

Crossover Frequency [Hz]       40 - 120

Low frequency driver, Quantity            1 x 8" long stroke

Low frequency driver, Diaphragm type            Paper Fibre Cone

Enclosure type Bass Reflex

Bass Reflex Tuning Frequency [Hz]    49.0

Max. Amplifier Power Output [RMS watt]         220

Continous IEC Power Output [RMS watt]        170

Input Impedance [ohms]          25k

Connection Input         Mono (LFE)

RCA

Stereo (low-pass filtered)

Magnetic Shielding      No

Recommended Placement      Floor

Recommended Distance From Wall [cm]        10 - 30

Functions         Crossover Frequency

Phase Switch

Standby (Auto Power) On/Off Switch

Volume (Gain)

Max. Power Consumption [W] 250

Standby Power Consumption [W]        0.4

Idle Power Consumption[W]    10.4

Dimensions With Base (HxWxD) [mm]            335 x 295 x 310

Accessories Included   Manual

Weight [kg]      10.4
