PRODUCT DETAILS
Following the design lines of the very popular MENTOR MENUET, the RUBICON series builds on a well known design language and takes it to new heights.

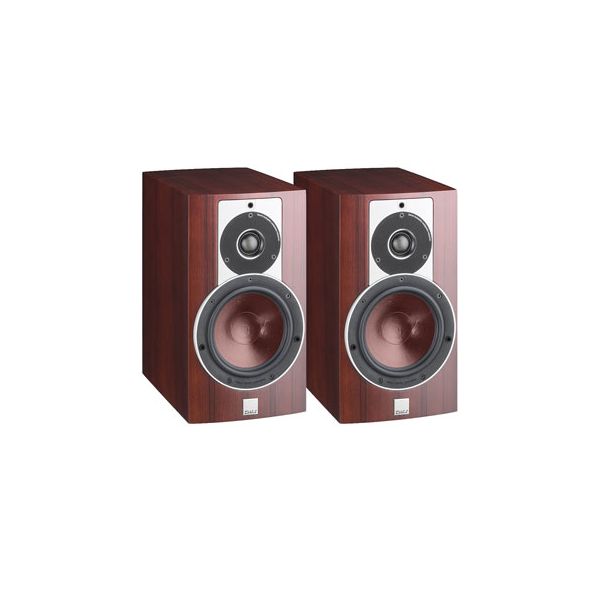

The RUBICON 2 stand loudspeaker is the perfect blend between compact size and large sound performance. With the solid MDF cabinet, the RUBICON 2 has a perfect working environment for its ultra-light 29 mm soft dome tweeter, 6.5 inch wood fibre low-loss driver, and gold-plated terminals. It is rich on detail with an impressive soundstage and has surprisingly large bass reproduction with both precision and timing.
Available in four finishes – HighGloss White, High-Gloss Black, Rosso and Walnut – the RUBICON 2 comes complete with rubber feet to hold it firmly in position and, to help keep it at its aesthetic as well as acoustic best.
The RUBICON 2 can be included in different variations of surround setups, e.g. a pair of RUBICON 8, RUBICON 6 or RUBICON 5, a RUBICON VOKAL and a SUB M-10 D.
SMC MAGNET SYSTEM
With a pole piece constructed entirely from SMC, surrounded by a slitted copper cap, and enclosed within a large ferrite magnet, the effect of the SMC is focused and maximised, and reduces distortion as never heard before.
SOFT DOME TWEETER
With a clear heritage from our high-end series, the lightweight dome tweeter offers best in class resolution.
WOOD FIBRE CONES
Using a wood fibre cone gives the in-house build woofer a light, rigid and randomly uneven membrane. Making it easy to move ensures even piston like movements and reduces the possibility of surface resonance greatly.
CABINET CONSTRUCTION
Dividing the mid-range and basse drivers into separated chambers enables us to individually tune every driver to its specific frequency range to maximise the woofer output.
SMC
All variants in the series feature the DALI SMC magnet system which reduces distortion as never heard before. Part of the “secret” is the individually coated magnetic granules that make it possible to mould a strong magnet that’s not electrically conductive.
TWEETER
The ultra-lightweight soft dome tweeter used in the RUBICON 2 is designed to reach higher into the very high frequencies. Higher than normal for at soft dome used in a DALI hybrid tweeter. This is done since the soft dome tweeter is required to work on its own in the RUBICON 2.
The voice coil used in the RUBICON 2 is furthermore designed to be very light and agile in order to achieve a broader bandwidth. This lighter voice coil is placed inside a powerful ferrite magnet that keeps a tight control of its movements.
WOOFER
The cone used in the RUBICON 2 draws upon the heritage from the EPICON technologies, and has a light, rigid and randomly uneven structure. This lower the complexity of the central part of the motor, ensures even piston like movements, reduces the possibility of surface resonance greatly and creates an extremely low distortion within the RUBICON 2.
The soft low-loss rubber surround is designed and bespoke specifically for the RUBICON 2, and all of the components are situated in an aluminum chassis designed for maximum airflow around the cone and magnet system.
DALI RUBICON 2 SPECS
Product series RUBICON
Frequency Range (+/-3 dB) [Hz] 50 - 26.000
Sensitivity (2,83 V/1 m) [dB] 87.0
Nominal Impedance [ohms] 4
Maximum SPL [dB] 107
Recommended Amplifier Power [W] 40 - 150
Crossover Frequency [Hz] 3,1
Crossover Principle 2-way
High frequency driver, Quantity 1 x 29 mm
High frequency driver, Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 6½"
Low frequency driver, Diaphragm type Wood Fibre Cone
Connection Input Single Wire
Magnetic Shielding No
Recommended Placement Shelf or stand
Recommended Distance From Wall [cm] 20 - 120
Dimensions With Base (HxWxD) [mm] 353 x 195 x 335
Accessories Included Manual
Micro Fibre Cloth
Rubber Bumpers
Weight [kg] 8.0
