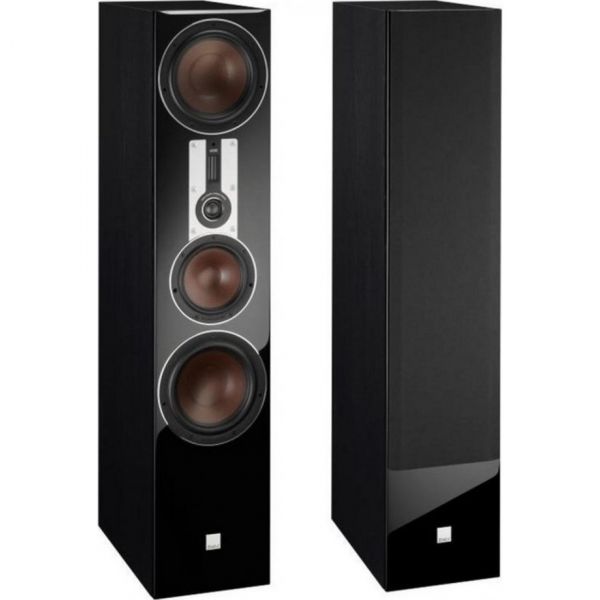

Dali Opticon 8 Floor Standing Speaker

HAND-ASSEMBLED

The mounting of the drivers and the final tests and approvals on each and every speaker is also handled directly at our own assembly lines in our Danish factory.

DALI DRIVERS

All elements of the DALI drivers are designed, produced and manufactured in-house in DALI.

DALI MDF CABINETS

Keeping the manufacturing of the OPTICON series firmly in the hands of DALI we utilize our large and efficient woodworking facility in Denmark to handle everything from cutting out the Medium Density Fibre board (MDF) cabinet to applying the vinyl.

SMC-TECHNOLOGY

In the OPTICON woofer magnet motor system the pole piece is purely constructed of SMC. SMC’s unique ability to deliver a high magnetic conductivity and a very low electrical conductivity delivers all the wanted qualities of a really good speaker magnet without the traditional downsides.

SMC

Soft Magnetic Compound (SMC) is a coated magnet granule that can be shaped into any form that you would want. SMC has many advantages, and used in a speakers magnet motor system it result in a significant reduction of distortion from mechanical loss.

SMC’s unique ability to deliver a high magnetic conductivity and a very low electrical conductivity delivers all the wanted qualities of a really good speaker magnet without the traditional downsides. The result is a significant lowering of the colouration of the reproduced sound.

In the OPTICON 8 woofer magnet motor system the pole piece is purely constructed of SMC. This important addition to the ferrite based motor system is paramount to the audio performance of the OPTICON series.

HYBRID TWEETER

DALI has a long and well proven tradition for using a hybrid tweeter module. It is a combination of a dome tweeter working together with a ribbon tweeter for an amazing rendering of the high frequencies, and a dispersion of high frequency sounds that outperform all other tweeter technologies.

In our view, the Hybrid Tweeter Module is the perfect high frequency solution. Both the soft dome and the ribbon tweeter are free of artefacts, e.g. resonances and high Q peaks within their working range.

The Hybrid Tweeter Module features an extremely smooth and wide horizontal dispersion - one of our sound design trademarks. Even the detailing of the faceplate of the tweeter module is designed for optimal horizontal dispersion.

The characteristics of the Soft Dome Tweeter is low resonance frequency, high power handling, and exceptional headroom for high sound pressure levels and extreme excursions. It is rolled in carefully around 2.0 - 2.5 kHz, depending on the model. And the dome is allowed to operate up to its high frequency limit well beyond 20 kHz without being rolled off in the crossover.

Incorporating an ultra-thin magnetic fluid for cooling, the fluid has a very high flux saturation point for greater power handling. This also means superb control of coil movement - even at very high sound pressure levels.

WOOFER

The woofer for the OPTICON 8 is designed with a strong focus on DALI sound principles of low-loss, low distortion and low colouration of the reproduced sound. The ideal speaker plays just what the amplifier intented, with nothing added and nothing subtracted.

To meet these ideals every part in the OPTICON woofer is carefully chosen for its low-loss abilities. The cone is made from a pulp mix of paper and wood fibre that ensures very low surface resonance and gives the cones their distinctive colour. The cone terminates in a rubber surround that is chosen for its soft and very flexible properties. This gives the cone free movement with very low dampening effect, and leaves control of the cone movement to the WOOFER magnet motor. The rubber surround is attached to an aluminium chassis that, due to the properties of aluminium, offers almost no interference to the magnetic field surrounding the magnet motor.

The magnet motor itself consists of a large ferrite magnet that surrounds a pole piece made entirely of the unique material SMC. The pole piece and the ferrite magnet are secured between two soft iron plates. This forms a close to optimum environment for the 2 layer voice coil to work within. The voice coil is therefore able to transform the signals from the amplifier in to an undistorted, uncoloured and very well timed reproduction of the original signal, leaving the listener with a close to live experience.

The ribbon tweeter features a broad frequency band and superb dispersion in the higher frequencies. Gently rolled in above 10 kHz, the ribbon reaches full contribution from 14 kHz to well beyond 30 kHz, far above the audible range.

Equipped with a rear chamber fitted with rigid bracing, the ribbon is shielded from the disruptive influence of the woofers. The DALI ribbon tweeter is a true master in horizontal distribution of high frequencies, and a superb partner for the soft dome tweeter’s unique ability to reproduce frequencies from 2 kHz upwards.

DALI OPTICON 8 SPECS

Product series OPTICON

Frequency Range (+/-3 dB) [Hz]         38 - 32,000

Sensitivity (2,83 V/1 m) [dB]    88.0

Nominal Impedance [ohms]     4

Maximum SPL [dB]      112

Recommended Amplifier Power [W]    40 - 300

Crossover Frequency [Hz]       390 / 2,300 / 14,000

Crossover Principle     3 + ½-way

Hybrid tweeter module, Super high freq. driver, Quantity        1 x 17 x 45 mm

Hybrid tweeter module, Super high freq. driver, Diaphragm type        Ribbon

Hybrid tweeter module, High frequency driver, Quantity         1 x 28 mm

Hybrid tweeter module, High frequency driver Diaphragm type          Soft Textile Dome

Midrange driver, Quantity        1 x 6 1/2"

Midrange driver, Diaphragm type        Wood Fibre Cone

Low frequency driver, Quantity            2 x 8"

Low frequency driver, Diaphragm type            Wood Fibre Cone

Enclosure type Bass Reflex

Bass Reflex Tuning Frequency [Hz]    29.5

Connection Input         Bi-Wiring

Magnetic Shielding      No

Recommended Placement      Floor

Recommended Distance From Wall [cm]        30 - 150

Dimensions With Base (HxWxD) [mm]            1140 x 241 x 450

Accessories Included   Assembly Tools

Manual

Rubber Bumpers

Spikes M8

Weight [kg]      34.8
