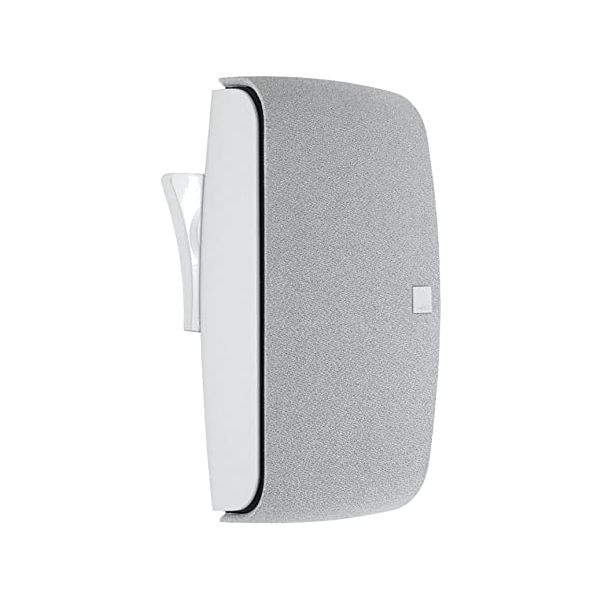

Dali Fazon Satellite Speaker White

WOOD FIBRE CONES

Low-loss drivers made of low-mass paper cones with wood fibre reinforcement. The driver technology builts on the MENTOR and IKON series.

CURVED DESIGN

The FAZON series is based on a curved design that eliminates reflections and standing waves.

DALI DRIVER TECHNOLOGY

Build around the traditional ultra light soft dome tweeter and the well known wood fibre cone low-loss woofer, every speaker in the FAZON series is a master of audio reproduction.

INTELLIGENT TERMINALS

Every speaker in the FAZON series has an intelligent terminal solution that is perfectly aligned with the user scenarios of the speaker.

TWIST ‘N’ TILT

Equipped with a 360o pivoting wall bracket, FAZON SAT offers a exible and innovative “Twist ‘n‘ Tilt” function. Whether mounted on the wall or on the table stand, you can angle the speaker precisely horizontally and vertically; tilt it up and down or swivel it to either side.

TWEETER

Most dome tweeters are 25–26mm diameter. FAZON SAT share tweeter technology with other DALI speakers, and are based on a 28mm voice coil. That means 25% longer voice coil circumference and better power handling, both short and long term compared to more common 1 inch tweeters. Moreover, power compression is reduced because of the oversized voice coil.

Power handling is further improved by the use of aluminium heat sink on the back of the magnet system.

The oversized diameter of the dome tweeter has further advantages: The surface area of the tweeter is larger than normal – resulting in higher sound pressure levels for a given electrical input. The resonance frequency is also reduced by use of the oversize dome, which will make a better integration with the sound from the mid/woofers and improve dynamics of the deepest tones the dome tweeter reproduces.

Even tough the dome tweeter is larger than normal; the weight of the dome is lower than normal, due to the use of a thin, light weight material. The low moving mass will make it possible for the dome to react faster on the electrical signals that is fed to the voice coil. The outcome is sound with a more natural character, as well as improved resolution and attention to fine details and micro dynamics.

WOOFER

The FAZON SAT features a 4.5 inch wood fibre cone, which has become a speciality in DALI driver designs since the introduction into the top-line EUPHONIA series.

Wood fibres add stiffness to paper cones without any ringing tendencies, and have proven to work as a key technology in reproducing the finest details and dynamics in the music without any loss. Paper cones are typically very light weight in comparison with other cone materals.

At DALI we believe in designs based on low mechanical losses. This means that we were among the first to insist in controlling the frequency response by carefully balanced designs, even with very low-loss rubber surrounds that will reveal problems in poor design.

We do not want to use nonlinear mechanic effects to control, reduce or limit the movement of the parts that should reproduce the music. We want the amplifier current to be the factor to control the movement.

DALI FAZON SAT SPECS

Product series FAZON

Frequency Range (+/-3 dB) [Hz]         86 - 25,000

Sensitivity (2,83 V/1 m) [dB]    86.0

Nominal Impedance [ohms]     6

Maximum SPL [dB]      104

Recommended Amplifier Power [W]    20 - 120

Crossover Frequency [Hz]       1,800 Hz

High frequency driver, Quantity           1 x 28 mm

High frequency driver, Diaphragm type           Soft Textile Dome

Low frequency driver, Quantity            1 x 4.5"

Low frequency driver, Diaphragm type            Wood Fibre Cone

Enclosure type Closed Box

Connection Input         Single Wire

Magnetic Shielding      No

Recommended Placement      Centre / Soundbar

On-Wall

Shelf or stand

Dimensions With Base (HxWxD) [mm]            287 x 146 x 172 (with table stand)

Dimensions (HxWxD) [mm]     255.5 x 138 x 87

Accessories Included   Assembly Tools

Manual

Table Stand

Wall Bracket

Weight [kg]      2.4
