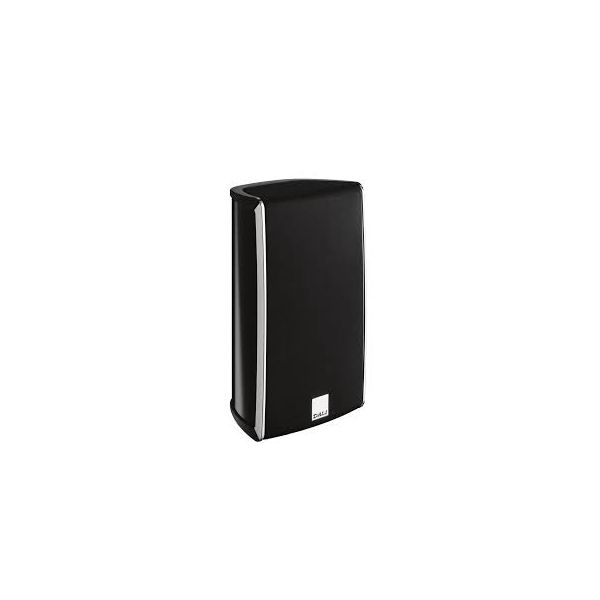

Dali Fazon Mikro Pr Satellite Speaker

DIE-CAST ALUMINIUM

The fluid, organic lines of the die-cast aluminium enclosures combined with enhanced structural integrity, reduced vibration and no parallel surfaces, all key elements in the pure, musical tone of these masterful loudspeakers.

CURVED DESIGN

The FAZON series is based on a curved design that eliminates reflections and standing waves.

DALI DRIVER TECHNOLOGY

Build around the traditional ultra light soft dome tweeter and the well known wood fibre cone low-loss woofer, every speaker in the FAZON series is a master of audio reproduction.

INTELLIGENT TERMINALS

Every speaker in the FAZON series has an intelligent terminal solution that is perfectly aligned with the user scenarios of the s peaker.

PLACEMENT

The FAZON MIKRO features a wide dispersion pattern, a property shared with all DALI speakers, a technique that has been refined by the acoustic engineers at DALI over the years. DALI speakers in general should not be toed in, allowing a higher degree of freedom in placement, and a much larger ‘sweet spot’ in the listening position.

Flexibility is the key with FAZON MIKRO, and it can be used mounted on the wall, on a bookshelf or cabinet or on the optional floor stands. The supplied bracket has multiple functions and can be used both as a wall mount for the FAZON MIKRO or MIKRO VOKAL speaker, or as the stand for the FAZON MIKRO VOKAL when positioned on a bookshelf or cabinet.

The FAZON MIKRO is designed to be positioned close to the wall, even when used with the optional floor stands. This not only minimizes the visual impact of the speaker on the room, but also helps the FAZON MIKRO extend the low bass performance.

SYSTEM

The FAZON MIKRO will work perfectly when used in a stereo or surround sound setup. They also perfectly compliment the other products from the FAZON series, and can therefore easily be introduced to a system already featuring DALI FAZON SATs, LCR or F5 speakers as either surround or rear speakers. The FAZON MIKRO VOKAL can also easily be used as the centre speaker in collaboration with either the FAZON SAT or FAZON LCR.

The FAZON MIKRO is a full range speaker that will supply a complete audio picture on its own, but adding a subwoofer will expand the sound to an even fuller and more dynamic experience - even in stereo. The FAZON SUB 1 is the perfect companion for a stereo set of FAZON MIKRO’s, but will work just as well in a surround setup. If even more bass is required or the system is being used in a larger room the soon to be released DALI SUB E-9 F would be the perfect choice in a FAZON MIKRO surround system.

TWEETER

True to the other FAZON series loudspeakers, DALI decided to use a lightweight soft-dome tweeter to supply all the high frequencies for the FAZON MIKRO. The 20mm tweeter is a brand new design and has been especially developed for use with the MIKRO speakers utilising expertise gained over 30 years of loudspeaker design and manufacture.

Based on a 55mm ferrite magnet, the FAZON MIKRO tweeter is able to handle more power and convert it into movement and not heat, thereby reducing power compression.

Soft felt damping is used on top of the pole piece to eliminate unwanted reflections in the area right under the dome. This allows the tweeter to generate high sound pressure levels and extreme excursions to render high frequencies with very high accuracy and speed. Thus enabling the FAZON MIKRO to deliver stunning detail in the high frequencies and extend the sound image way above the audible limit of the ear for a more complete sound experience.

WOOFER

Designing a woofer for a small cabinet requires a lot of focus on sensitivity as there is only a relatively small cone area to move the air. This, therefore, requires as much of the energy from the ampli er to be turned into movement as possible. Through the use of DALI’s low-loss technologies, DALI’s acoustic engineers have put together a woofer that not only delivers on high sensitivity, but also has a very linear magnet motor system with an ‘easy on the amplifier’ impedance curve.

The basket is constructed from a glass reinforced polymer that helps make it light, very strong and keeps it from interfering with the magnetic field surrounding the voice coil. The visual part of the woofer, the cone, is made from DALI’s trademarked wood fibre mixed with a fine grain paper pulp, and is secured to the basket with a low-loss rubber surround. The voice coil is surrounded by four layers of copper plated aluminium wire to build a very strong but light magnet motor system that delivers highly controlled motion of the voice coil, but also keeps it easy to drive.

All this translates into a woofer that is easy to drive, even when used with smaller stereo systems, reproduces even the smallest micro details in the audio picture, and has the ability to generate low bass at a surprising high level for a woofer of this size.

DALI FAZON MIKRO SPECS

Product series FAZON

Frequency Range (+/-3 dB) [Hz]         95 - 25,000

Sensitivity (2,83 V/1 m) [dB]    84.0

Nominal Impedance [ohms]     6

Maximum SPL [dB]      101

Recommended Amplifier Power [W]    30 - 120

Crossover Frequency [Hz]       2,560 Hz

High frequency driver, Quantity           1 x 20 mm

High frequency driver, Diaphragm type           Soft Textile Dome

Low frequency driver, Quantity            1 x 4"

Low frequency driver, Diaphragm type            Wood Fibre Cone

Enclosure type Closed Box

Connection Input         Single Wire

Magnetic Shielding      No

Recommended Placement      On-Wall

Shelf or stand

Recommended Distance From Wall [cm]        0 - 50

Dimensions With Base (HxWxD) [mm]            196 x 113 x 96

Accessories Included   Manual

Rubber Pads

Wall Bracket

Wall Bracket Bumper

Optional Accessories   Black Grille

Floor Stand

White Grille

Weight [kg]      1.5
