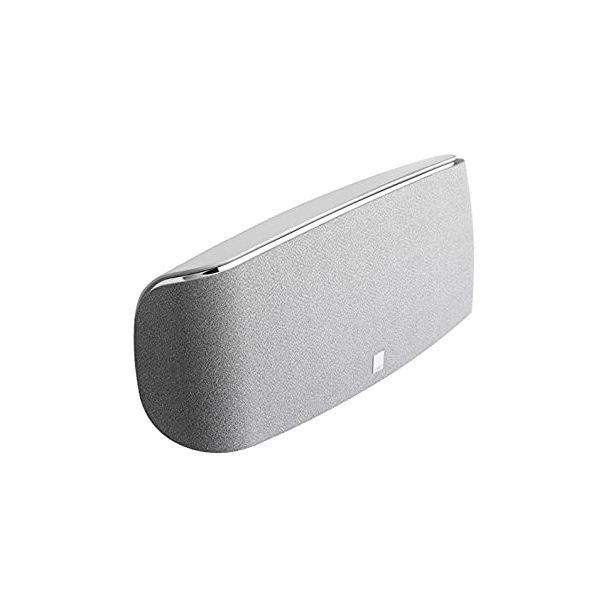

Dali Fazon Left Center Right White

DIE-CAST ALUMINIUM

The fluid, organic lines of the die-cast aluminium enclosures combined with enhanced structural integrity, reduced vibration and no parallel surfaces, all key elements in the pure, musical tone of these masterful loudspeakers.

WOOD FIBRE CONES

Low-loss drivers made of low-mass paper cones with wood fibre reinforcement. The driver technology builts on the MENTOR and IKON series.

CURVED DESIGN

The FAZON series is based on a curved design that eliminates reflections and standing waves.

MAGNETIC GRILLES

All products of the FAZON series come with exclusive magnetic grilles enabling an easy click-on function.

CLICK 'N' CONNECT

No cables, no connectors, no hassle – just use the Click'n'Connect wall bracket that is delivered with the speaker. The FAZON LCR wall bracket ensures an easy and secure fixation on the wall, and at the same time a hassle-free audio-grade connection of the speaker.

On the rear side of the Click'n'Connect connector, the high quality audio grade crossover is mounted - ensuring a short signal path. Speaker wires are fastened to the gold plated connectors on the back side of the wall bracket, which are designed to allow the choice of a hidden wire (in-wall) or an on-wall speaker cable. Gold plated 4mm banana plug style Connector pins will ensure high quality electrical connection between the loudspeaker and the wall bracket.

The speaker may be rotated to desired vertical or horizontal orientation without affecting polarity. The correct connection is clearly recognised by an audible “click” when the speaker is pushed onto the wall bracket. For extra caution, the release button can be locked with an integrated lock-screw. Mounted on the wall the distance from wall to outer speaker point is only 11.5 cm/4.6 inches.

TWEETER

Most dome tweeters are 25–26mm diameter. FAZON LCR share tweeter technology with other DALI speakers, and are based on a 28mm voice coil. That means 25% longer voice coil circumference and better power handling, both short and long term compared to more common 1 inch tweeters. Moreover, power compression is reduced because of the oversized voice coil.

Power handling is further improved by the use of aluminium heat sink on the back of the magnet system.

The oversized diameter of the dome tweeter has further advantages: The surface area of the tweeter is larger than normal – resulting in higher sound pressure levels for a given electrical input. The resonance frequency is also reduced by use of the oversize dome, which will make a better integration with the sound from the mid/woofers and improve dynamics of the deepest tones the dome tweeter reproduces.

Even tough the dome tweeter is larger than normal; the weight of the dome is lower than normal, due to the use of a thin, light weight material. The low moving mass will make it possible for the dome to react faster on the electrical signals that is fed to the voice coil. The outcome is sound with a more natural character, as well as improved resolution and attention to fine details and micro dynamics.

WOOFER

The FAZON LCR features a pair of 4.5 inch wood fibre cones, which have become a speciality in DALI driver designs since the introduction into the top-line EUPHONIA series.

Wood fibres add stiffness to paper cones without any ringing tendencies, and have proven to work as a key technology in reproducing the finest details and dynamics in the music without any loss. Paper cones are typically very light weight in comparison with other cone materals.

At DALI we believe in designs based on low mechanical losses. This means that we were among the first to insist in controlling the frequency response by carefully balanced designs, even with very low-loss rubber surrounds that will reveal problems in poor design.

We do not want to use nonlinear mechanic effects to control, reduce or limit the movement of the parts that should reproduce the music. We want the amplifier current to be the factor to control the movement.

DALI FAZON LCR SPECS

Product series FAZON

Frequency Range (+/-3 dB) [Hz]         78 - 25,000

Sensitivity (2,83 V/1 m) [dB]    89.0

Nominal Impedance [ohms]     6

Maximum SPL [dB]      107

Recommended Amplifier Power [W]    15 - 120

Crossover Frequency [Hz]       3,000 Hz

High frequency driver, Quantity           1 x 28 mm

High frequency driver, Diaphragm type           Soft Textile Dome

Low frequency driver, Quantity            2 x 4.5"

Low frequency driver, Diaphragm type            Wood Fibre Cone

Enclosure type Closed Box

Connection Input         Single Wire

Magnetic Shielding      No

Recommended Placement      Centre / Soundbar

On-Wall

Dimensions With Base (HxWxD) [mm]            385 x 157 x 117

Accessories Included   Installation Templates

Manual

Mounting Brackets

Wall Bracket

Weight [kg]      3.5
