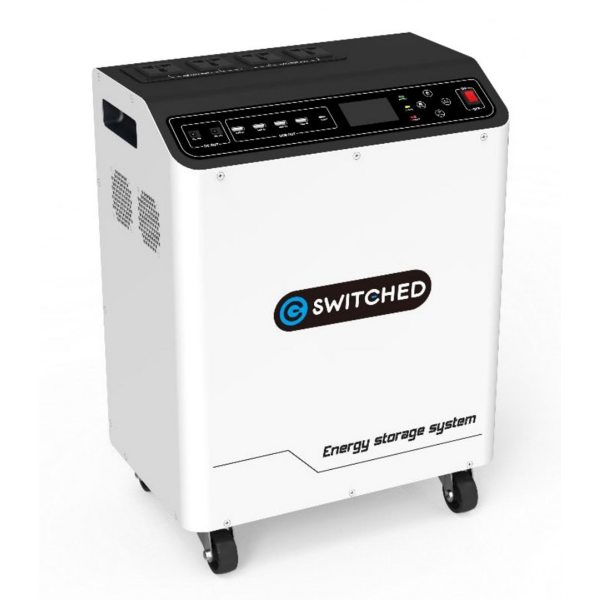

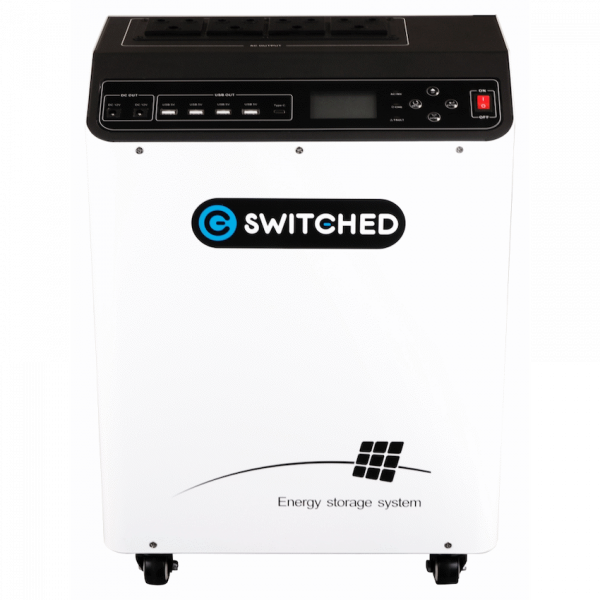

Switched 1000W LiFePo4 ESS Solar Power System SWD-8920

The Switched 1000W Solar Power System | LiFePo4 ESS Trolley Power Station offers a range of compelling benefits, making it a valuable addition to both residential and commercial settings. With its robust 1000W power output, this system harnesses solar energy to provide a reliable and sustainable source of electricity, contributing to reduced reliance on traditional grid-based power sources.

One of the standout features is the utilization of LiFePo4 ESS (Lithium Iron Phosphate Energy Storage System) technology. This advanced battery technology ensures enhanced energy storage capacity, longer lifespan, and increased safety compared to conventional lithium-ion batteries. This means users can store excess solar energy during peak production times and utilize it during periods of low sunlight, effectively optimizing energy consumption and reducing overall utility bills.

The trolley design of the power station adds an element of portability and convenience. Users can easily move the power station to different locations, making it adaptable for outdoor events, remote work sites, or emergency situations. The system's compatibility with solar panels enables eco-friendly energy generation, reducing carbon footprint and contributing to a greener environment.

Specifications

Rated Power: 1000W

Output Voltage Waveform: Pure Sine Wave

Output Voltage Regulation: 230Vac 5%

Output Frequency: 50Hz or 60Hz

Peak Efficiency: 90%

Nominal DC Input Voltage: 12Vdc ( 0.3)

Standby Consumption: < 25W

Max Solar Power Input: 900W

PV Max Charging Current: 60A ( 3A)

Combined Charging Current: 70A ( 4A)

Max Efficiency: 98.0%

PV Array Open Circuit Voltage: 105VDC

PV Array MPPT Voltage Range: 15~105V

AC Input Voltage: 230Vac 5%

Acceptable Input Voltage Range: 90-280VAC

Nominal Input Frequency: 50Hz / 60Hz (Auto Detection)

Transfer Time: 10ms typical (UPS, VDE); 20ms typical (APL)

Charging Current @ Nominal Input Voltage: 10/20A ( 4A)

Charging Algorithm: 4-step (Li)

AC Output: 230Vac (Socket x 4pcs)

USB (5V 2.4A): DC Output x 2pcs

USB (12V 1A): DC Output x 1pcs

Nominal Voltage: 12.8V

Battery Capacity: 1280Wh

Protection Board: 100A

Standard Charging and Discharge Current: 50A

Maximum Charging & Discharge Current: 100A

Operation Ambient Temperature: Charge-0~45

Discharge: 10~60
