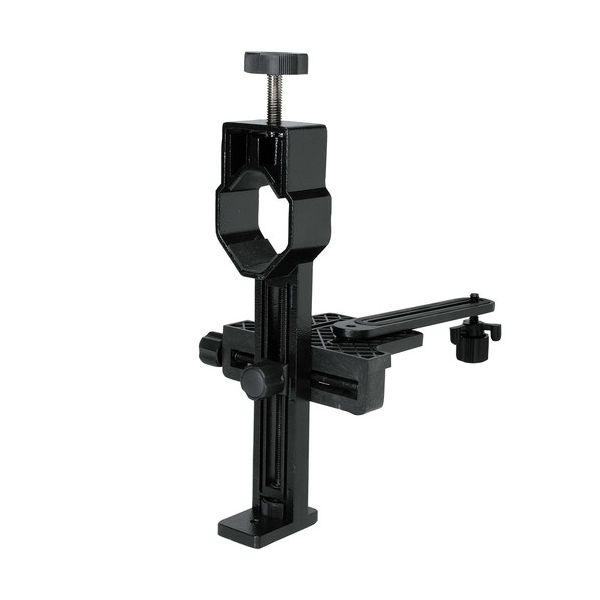

This Konus 1301 Universal Digiscoping Adapter is a system that consists of three main components: a camera platform, a camera platform extension, and a smartphone holder. Those three components can be variously configured to allow a point-and-shoot camera or a smartphone to use a telescope or spotting scope as a telephoto lens.
Featuring an adjustable clamp, the camera platform can be attached to a telescope or spotting scope eyepiece with a diameter of 1.15" up to 1.73" (44mm). A point-and-shoot camera with 1/4"-20 mounting threads can then be screwed onto the camera platform's mounting bolt, which can be moved a total of 1.5" forwards or backwards. Additionally, a connected camera can be adjusted a total of 4.5" upwards or downwards. This combination of horizontal and vertical movement, along with two selectable slots for the camera platform's mounting bolt, allows a connected camera's lens to be aimed into a spotting or telescope's eyepiece. For cameras that require up to 5.1" of additional distance from an eyepiece to effectively digiscope, a camera platform extension is included that can be screwed onto the camera platform's mounting bolt, and has its own 1/4"-20 camera mount.
A smartphone holder is also included for digiscoping with wireless handheld devices. Two 1/4"-20 mounting bolts allow it to attach to the camera platform, the combination of which can accommodate a smartphone up to 2.3" to 3.9" high, and at least to 4.0" wide when measured in a horizontal orientation.
Allows a point-and-shoot camera or a smartphone to use a telescope or spotting scope as a telephoto lens
Can be attached to a telescope or spotting scope eyepiece 1.15" to 1.73"
Accommodates point-and-shoot cameras with 1/4"-20 mounting threads
Horizontal and vertical movements, along with two selectable slots for the mounting bolt allows a connected camera's lens to be aimed into a spotting or telescope's eyepiece
Camera platform extension with mounting bolt for cameras that require up to 5.1" of additional distance from eyepiece to effectively digiscope
Included smartphone holder for digiscoping with wireless handheld devices up to 2.3" to 3.9" high, and at least to 4.0" wide when measured in a horizontal orientation
Specifications
•Material: Plastic
•Dimensions Camera Platform (H x W): 22.9 x 9.7cm
•Dimensions Camera Platform Extension (L): 14.0cm
•Dimensions Smartphone Holder (H x W): 12.4 x 8.0cm
•Weight Camera Platform: 0.7kg
•Weight Camera Platform Extension: 0.2kg
•Weight Smartphone Holder: 0.5kg
