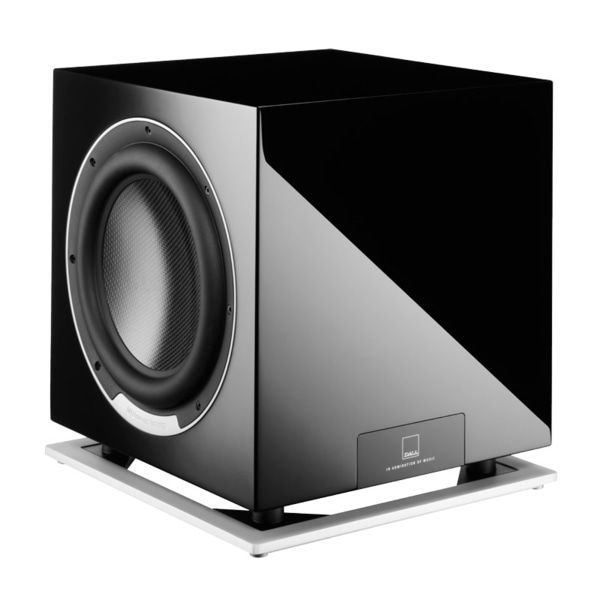

Dali Sub P-10DSS Black High Gloss Subwoofer

ELEGANT AND SIMPLE DESIGN

The cabinet is designed to fit perfectly to the size of the woofer, but without forgoing the inner volume that is needed to produce a powerful bass performance.

FLEXIBLE CONNECTIVITY

All DALI subwoofers are compatible with almost any amplifier, receiver or processor due to the choice of LFE or LINE inputs.

HIGH-YIELD AMPLIFIER

All amplifiers in DALI subwoofers have the stamina to keep a high-yield performance and the headroom to draw out that little extra when needed.

RIGID CONE STRUCTURE

The rigid cone structure based on either aluminium or cone fiber eliminates the need for a dust-cap and helps ensure a piston-like behaviour of the woofer.

AMPLIFIER

The powerful, integrated 300 Watt RMS Class D amplifier is highly linear, and will follow and render the required signal with an absolute minimum of bias. Designed not only for continuous power, but also for peak power, this subwoofer is able to deliver 500 Watt Peak Power. This is very relevant when it comes to both movie and music signals.

Switchmode power supply is part of the reason for very low power consumption and for an impressive efficiency within the amplifier. In unison the high-efficiency amplifier section and power supply construction generate an absolute minimum of heat loss. For that reason you will find no heat sink on this subwoofer.

The integrated limiter compares the input signal amplitude to the potential output signal level. If this circuit detects a potential problem the limiter will cut the signal in a soft manner and without affecting peak power.

Fitted with controls for gain, cut-off frequency, and phase, the DALI SUB P-10 DSS will adapt to any front speaker and room acoustics. And with a choice of LFE and LINE inputs it can be connected to almost any amplifier, receiver or processor.

DALI SUB P-10 DSS allows you to choose between movie and a music mode, also via the remote control. For a realistic and powerful rendering of e.g. explosions in a movie, the sound mode should be set to CINEMA, amplifying the lowest frequencies to ensure a realistic experience. For a neutral and very linear performance, the sound mode should be set to HIFI. This will ensure a precise rendering of all the details of the music, while optimizing the integration with your front speakers.

The subwoofer also features a dedicated remote control that allows you to adjust level, crossover frequency and phase from your favourite listening position. Mute and Power On/Off can also be controlled from a distance.

ACTIVE WOOFER

DALI SUB P-10 DSS is equipped with an active 10” down-firing woofer. The cone is a sandwich construction with carbon fibre at the front paired with paper pulp at the back. The geometry and the material applied eliminate the need for a dust cap. The result is a rigid cone with superior breakup characteristics while at the same time being very lightweight and agile. Indeed these are prerequisites for a precise bass reproduction, rendering all the dynamics of the signal.

The 4-layer voice coil is mounted on an aluminium former. In order to reduce potential micro-resonance, the inside of the former has been lined with a thin paper pulp. Voice coil diameter is a solid 63.5 mm to ensure maximum power handling. A large 2-piece ferrite magnet with a vented pole piece ensures that the voice coil is kept in a tight grip, even when the party gets going.

For optimum control of the cone excursion, the woofer features dual spiders, situated 12 mm apart. In this way the voice coil maintains a 100% piston-like behaviour, even at very high sound pressure level.

Altogether DALI’s low-loss approach is implemented to the maximum. This goes for the surround as well. Made from wide, natural rubber, this part of the suspension also guarantees linearity across the entire 25 mm cone excursion. Even the oversized litz wires are made from solid silver clad 99.999% oxygen free cupper for optimum signal feed.

The chassis is made from aluminium to prevent any magnetic loss. And lots of research has gone into optimizing the entire construction for lowest possible mechanical and magnetic loss, and to ensure a free airflow.

PASSIVE WOOFERS

The two side-mounted woofers share much of the technology from the active driver. Cone geometry is identical to the down-firing woofer, and the cone material is also carbon fibre. The ‘upper’ part of the chassis is the same – 10 legs and identical suspension. However, there is only one spider, and of course no voice coil or magnet system behind it.

None of this is due to the visual appearance, however. The whole purpose of the passive radiator is to follow the movements of the active woofer. Though it looks simpler than the active woofer the passive radiator has been through hundreds of hours of careful designing to achieve the exact same tonal balance as in the active version.

An example: Embedded in the cone of the passive radiator is just the right amount of zinc alloy to achieve the desired weight. Only with the correct weight and distribution of weight you will get the excursion characteristics you are looking for. Zinc alloy was chosen due to its density and nonmagnetic properties.

DALI SUB P-10 DSS SPECS

Product series SUBWOOFERS

Frequency Range (+/-3 dB) [Hz]         24 - 250

Maximum SPL [dB]      112

Crossover Frequency [Hz]       40 - 120

Low frequency driver, Quantity            1 x 10" long stroke

Low frequency driver, Diaphragm type            Carbon fibre cone

Low frequency passive driver, Quantity           2 x 10" long stroke

Low frequency passive driver, Diaphragm type           Carbon fibre cone

Enclosure type Closed Box With Dual Passive Radiators

Max. Amplifier Power Output [RMS watt]         500

Continous IEC Power Output [RMS watt]        300

Input Impedance [ohms]          26k

Connection Input         Mono (LFE)

RCA

Stereo (low-pass filtered)

Magnetic Shielding      No

Recommended Placement      Floor

Recommended Distance From Wall [cm]        > 5

Functions         Cinema/Hifi Switch

Crossover Frequency

Standby (Auto Power) On/Off Switch

Standby (Auto Power) On/Off

Variable Phase Control

Volume (Gain)

Max. Power Consumption [W] 550

Dimensions With Base (HxWxD) [mm]            370 x 340 x 340

Accessories Included   Manual

Remote Control

Spikes M10

Weight [kg]      19.5
